HHV Ballistic Helmet ATE® Lite

The HHV ATE® Lite is an ultralight ballistic helmet that doesn't sacrifice protection for weight. The helmet shell (1.6lbs) is made up of UHMWPE and aramid fibers, and utilizes our patent pending Micro Lattice Pads to increase comfort and decrease backface deformation. Proudly made in Sweetwater, Texas the ATE Lite is the next generation for the ATE lineup from Hard Head Veterans.

HELMET SIZE (Circumference)

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• Extra Large > 24 3/4”

WHAT'S INCLUDED

• Above The Ear (ATE) high-cut helmet shell made from UHMWPE and next generation aramid fibers.

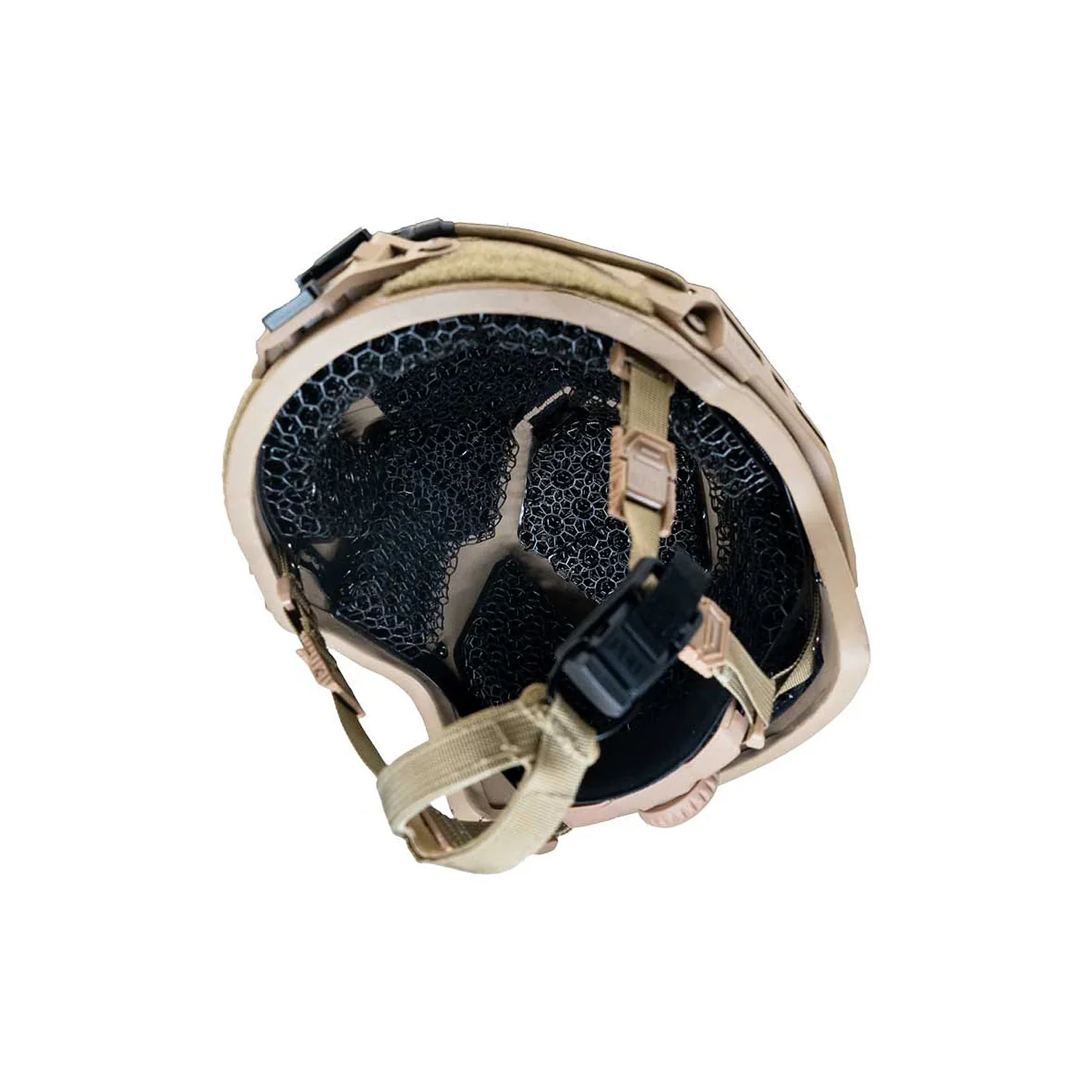

• Micro Lattice Padding System (Conforms naturally to the user's head while providing airflow and increased protection from blunt and ballistic impacts)

• A3S Lite Shroud (only 32 grams) compatible with standardized NVG mounts from Wilcox to Norotos, M-LOK Tactical Helmet Accessory Rails utilizing the MAGPUL M-LOK® System with integrated hook bungees, and external hook and loop.

• Quick Attach/Detach Magnetic Fidlock Suspension System with tightening ratchet. Allows for easy adjustment and single handed, gloved operation.

• Module design for mission specific scalability with numerous HHV and 3rd party accessories. Rifle Rated Up-Armor, Picatinny Rails, Communications Rail Adapter Kits, Tactical and Ballistic Face Shields, Alternate padding and suspension kits.

PERFORMANCE & SPECS

• NIJ Level IIIA (9mm FMJ ⁄ 44mag) Threats

• 17gr FSP Fragmentation Protection: V-50 rating of 2,500 ft's

• AR/PD 10-02 Rev. A (avg 83.0 G) Blunt Impact Performance

• BFD: 9mm @1400 ft/s 6.4mm (Crown), 14.6mm (Sides), 8.9mm (Front), 3.2mm (Rear)

• BFD Testing .40 S&W; 5.5mm and 16.6mm. .45 Auto 14.4mm and 16.5mm

• Compression/Environmental Testing: Ambient, Cold -60° F, Hot +160° F. Dry & Wet.

SIZE, COVERAGE, WEIGHT

• Small 154.55 in² / 2.20 lbs (1.00 kg)

• Medium 163.35 in² / 2.32 lbs (1.05 kg)

• Large 170.74 in² / 2.37 lbs (1.07 kg)

• Extra Large 183.23 in²/ 2.52 lbs (1.14 kg)

PROPER FIT

Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement. No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.
Use the size chart to find where your optimal tactical helmet size should be.

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• Extra Large > 24 3/4”

WARRANTY

• Lifetime Warranty on Hard Components
• 10-Year Warranty on Shell Performance
• 1-Year Warranty on Soft Component

BATTLE SCARS WARRANTY

HHV will replace your helmet if an HHV product has saved your life.

Please note that HHV's warranty does not cover normal wear and tear, misuse, abuse, or improper storage of your ballistic helmet.

SHIPPING & RETURNS

Exchanges & Returns: Be sure to inspect your new helmet carefully when you receive it — if you notice any defects or are dissatisfied with it for any reason, send it back to us within 30 days for a hassle-free exchange or refund.
