Antenna Relocation w/ Raptor Pouch, Motorola APX
Move your antenna off the front, increase line-of-sight.

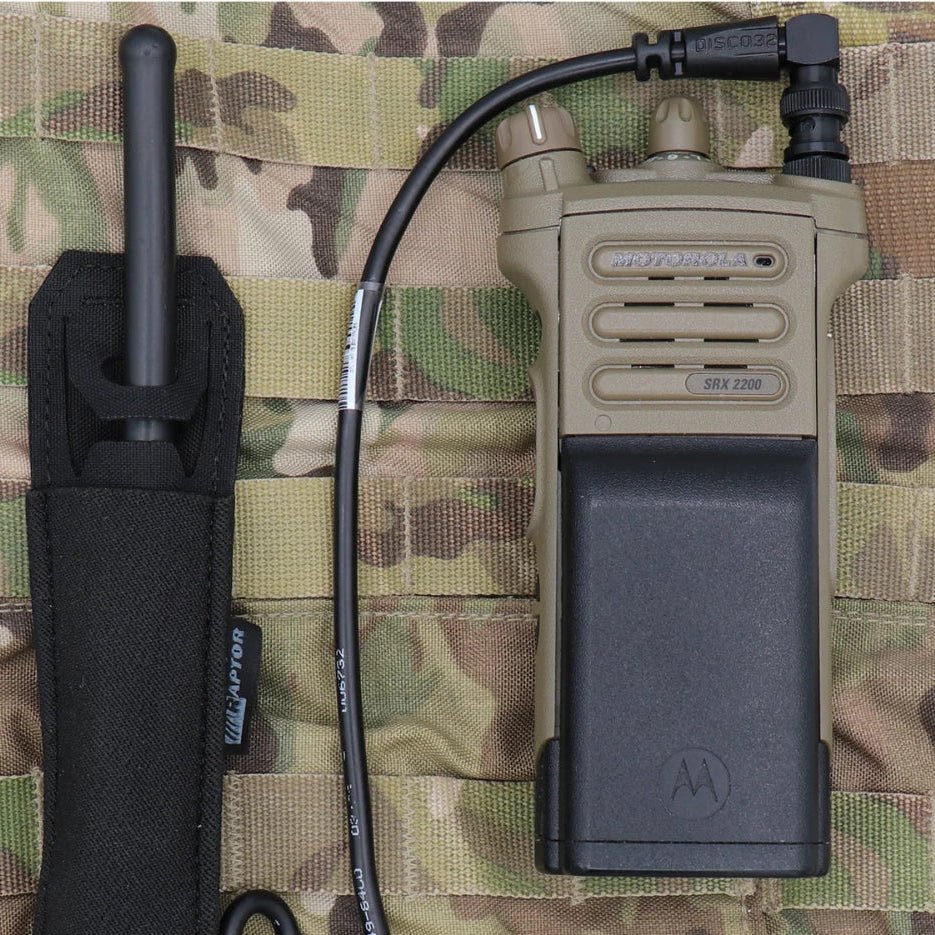

Move your APX-series radio antenna to a new location with precision and reliability. This kit provides everything needed for seamless antenna repositioning on compatible radio equipment, ensuring optimal signal performance after installation. This kit uses high-quality LMR-195 low-loss coax with over-molded construction for durability and strain relief. The cable is very flexible and maintains cable memory well, it works well routed through cable tabs and MOLLE panels. Connectors are ruggedized for weather resistance. The radio side features a 90° (right-angle) quick-disconnect, while the antenna side is a straight BNC with QD attachment. Available in 5 lengths. Made in the USA. 1-year warranty.

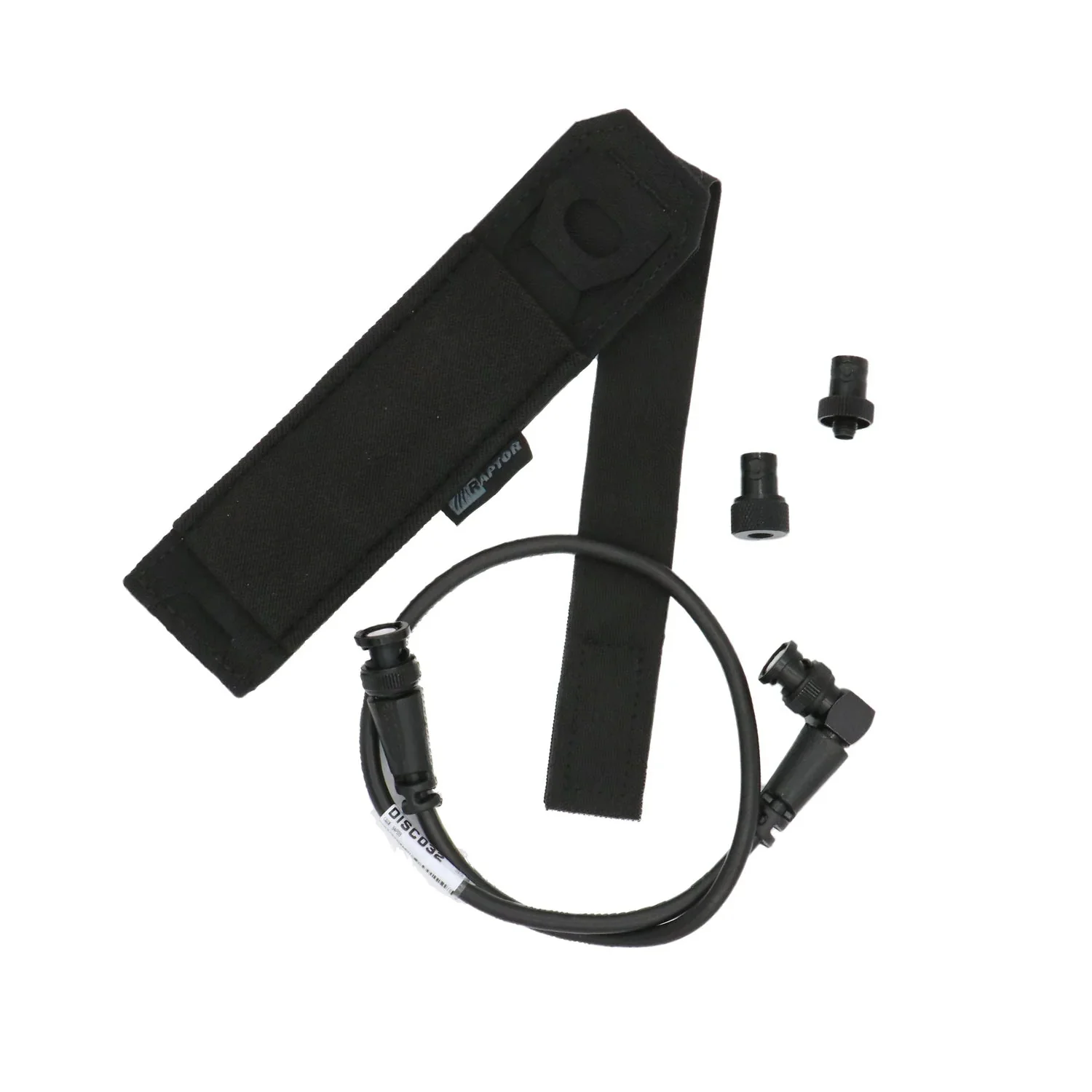

What’s Included
- 1 × BNC-to-BNC right-angle connectorized lead (radio side, 90°)
- 1 × BNC-to-BNC straight connectorized lead (antenna side, QD attachment)
- Ultra-flexible low loss coaxial cable
- 2x Adapters - SMA M to BNC and SMA F to BNC
- 1 × Antenna Relocation Pouch
- Over-molded strain-relief at both ends
- Weather-resistant, ruggedized connectors
Technical Specs
Cable: LMR-195, 50 Ω low-loss coax
Shielding: Bonded foil + 90% braid (high EMI immunity)
Outer Jacket: UV-resistant PE, field-durable
Operating Temp: −40 °C to +85 °C (−40 °F to +185 °F)
Min. Bend Radius: ≈ 0.5 in (installation)
Radio-Side Connector: BNC Right-Angle (90°) with quick-disconnect
Antenna-Side Connector: BNC Straight with QD attachment

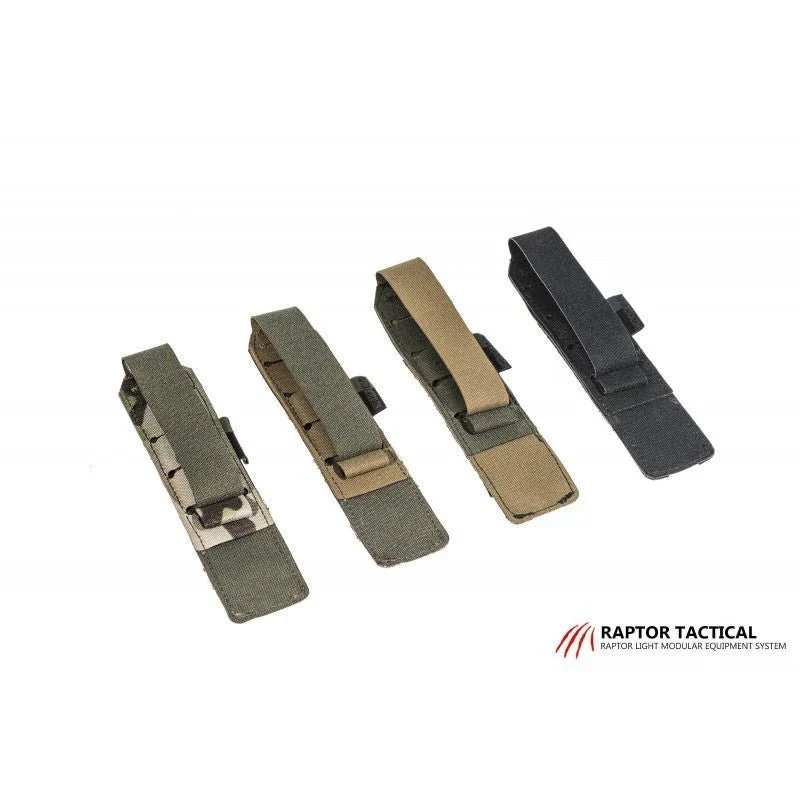

Pouch: Berry Amendment compliant; Made in Fayetteville, NC by RAPTOR Tactical
Environment: Ruggedized, weather-resistant over-molded construction
Warranty: 1 Year
Origin: Made in USA
Use Cases
Relocate APX-series radio antennas to chest rigs, shoulder straps, or packs
Improve line-of-sight and reduce body-blocking effect
Compatibility note: Designed for APX-series deployments using BNC terminations. Verify your radio/antenna interface before ordering. Quick-disconnect hardware style may vary by production batch; function and fit remain equivalent.
